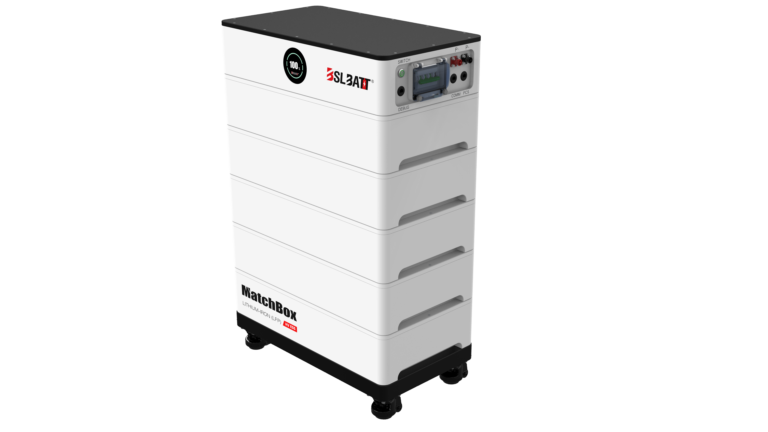

MATCHBOX HVS
10kWh-37kWh Stackable Battery High Voltage Lithium Solar Battery
MacthBox HVS is an ALL-IN-ON stackable battery that features LiFePO4 electrochemical technology and can achieve large capacities of up to 37.27kWh in a modular stackable design. It is equipped with BSLBATT’s state-of-the-art BMS and high voltage control system to optimize energy utilization and extend battery life to over 6,000 cycles at 80% DOD.
Main Features
- Modular Design, Plug and Play
- Higher Energy Density, 106Wh/Kg
- Max. 5 MatchBox HVS in Parallel
- Built-in Aerosol Fire Extinguishers
- Easily Configure WIFI Via the App
- Safe and Reliable LiFePO4
Why choose lithium batteries from BSLBATT®️?
A+ Cell Composition
Cooperating with the world's top three LFP Cell manufacturers, the battery cell features ultra-safe, explosion-proof, no leakage, and ultra-long cycle life
Smart BMS
The smart BMS can monitor battery operating status in real time and integrates a variety of safety features, including overcharge and deep discharge protection, voltage and temperature observation, overcurrent protection, cell monitoring and balancing, and overheating protection.
APP & Cloud Platform
BSLBATT APP & Cloud Platform offer dynamic power flow and generation reports with real-time monitoring, comprehensive visualization, multi-terminal compatibility, remote OTA upgrades, integrated after-sales service, and robust backup functions with data encryption to reduce maintenance costs and enhance security.
Most professional pre-sale and after-sale service
BSLBATT technical team has more than ten years of experience in the lithium battery industry, providing you with the most professional pre-sales as well as after-sales service. In addition, BSLBATT has branches in the United States, the Netherlands, Japan, Mexico and other places, and strives to develop a comprehensive global layout.

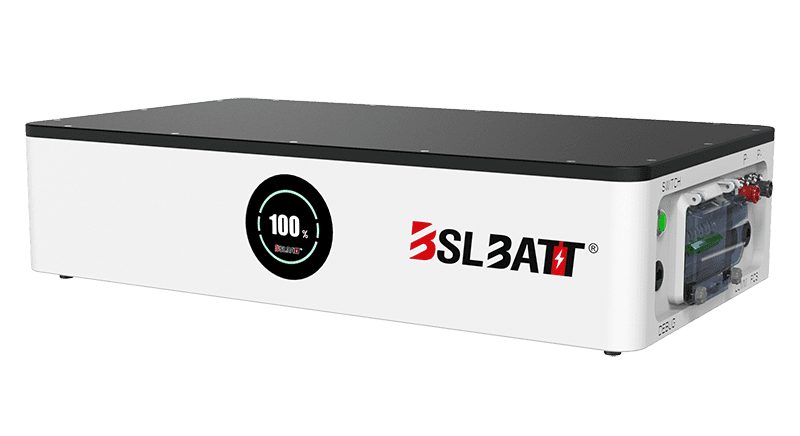

Leading Battery Management System
Adopting a two-tier management structure, it is able to accurately collect data from each single cell to the entire battery pack, and provide a variety of protection functions, such as overcharging, over-discharging, over-current, high temperature warning, etc., so as to prolong the service life of the battery system. BMS is also responsible for a series of important functions, such as parallel connection of battery packs and communication with the inverters, which are crucial to the stable operation of the batteries.
Scalable Modular Solar Battery
Consisting of Tier one A+ lithium iron phosphate batteries, a single pack has a standard voltage of 102.4V, a standard capacity of 52Ah, and a stored energy of 5.324kWh, with a 10-year warranty and a cycle life of over 6,000 cycles.
RESIDENTIAL ENERGY STORAGE SYSTEMS
| Model | HVS2 | HVS3 | HVS4 | HVS5 | HVS6 | HVS7 |
|---|---|---|---|---|---|---|
| Rated voltage(V) | 204.8 | 307.2 | 409.6V | 512 | 614.4 | 716.8 |
| Cell model | 3.2V 52Ah | |||||
| Battery model | 102.4V 5.32kWh | |||||
| System configuration | 64S1P | 96S1P | 128S1P | 160S1P | 192S1P | 224S1P |
| Rate power(KWh) | 10.64 | 15.97 | 21.29 | 26.62 | 31.94 | 37.27 |
| Charge upper voltage | 227.2V | 340.8V | 454.4V | 568V | 681.6V | 795.2V |
| Discharge lower voltage | 182.4V | 273.6V | 364.8V | 456V | 547.2V | 645.1V |
| Recommended current | 26A | |||||
| Maximum charging current | 52A | |||||
| Maximum discharging current | 52A | |||||
| Dimensions（W*D*H,mm） | 665*370*425 | 665*370*575 | 665*370*725 | 665*370*875 | 665*370*1025 | 665*370*1175 |
| Pack weight(kg) | 122 | 172 | 222 | 272 | 322 | 372 |
| Communication protocol | CAN BUS(Baud rate @500Kb/s @250Kb/s)/Mod bus RTU(@9600b/s) | |||||
| Host software protocol | CAN BUS(Baud rate @250Kb/s) / Wifi / Bluetooth | |||||
| Operation temperature range | Charge:0~55℃ | |||||
| Discharge: -10~55℃ | ||||||
| Cycle life(25℃) | ＞6000 cycles @80% DOD | |||||
| Protection level | IP54 | |||||
| Storage tempearture | -10℃~40℃ | |||||
| Storage humidity | 10%RH~90%RH | |||||
| Internal impedance | ≤1Ω | |||||
| Warranty | 10 years | |||||
| Service life | 15-20 years | |||||
| Multi-group | Max. 5 systems in parrallel | |||||
| Certification | ||||||
| Safety | IEC62619/CE | |||||
| Hazardous materials classification | Class 9 | |||||
| Transportation | UN38.3 | |||||
Completed Projects

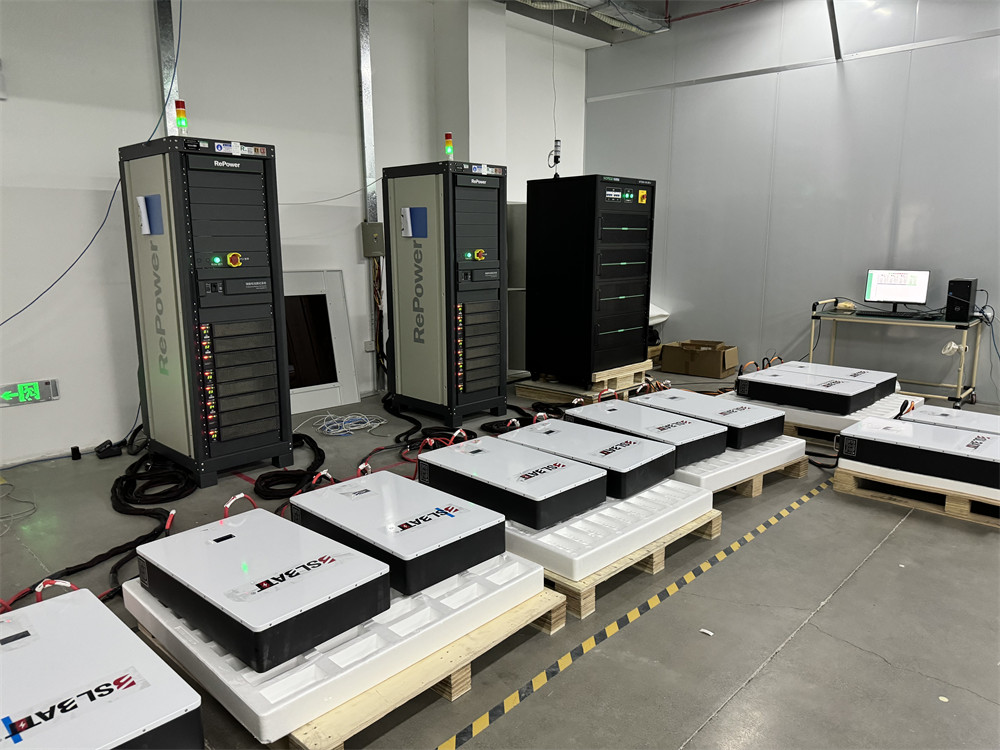

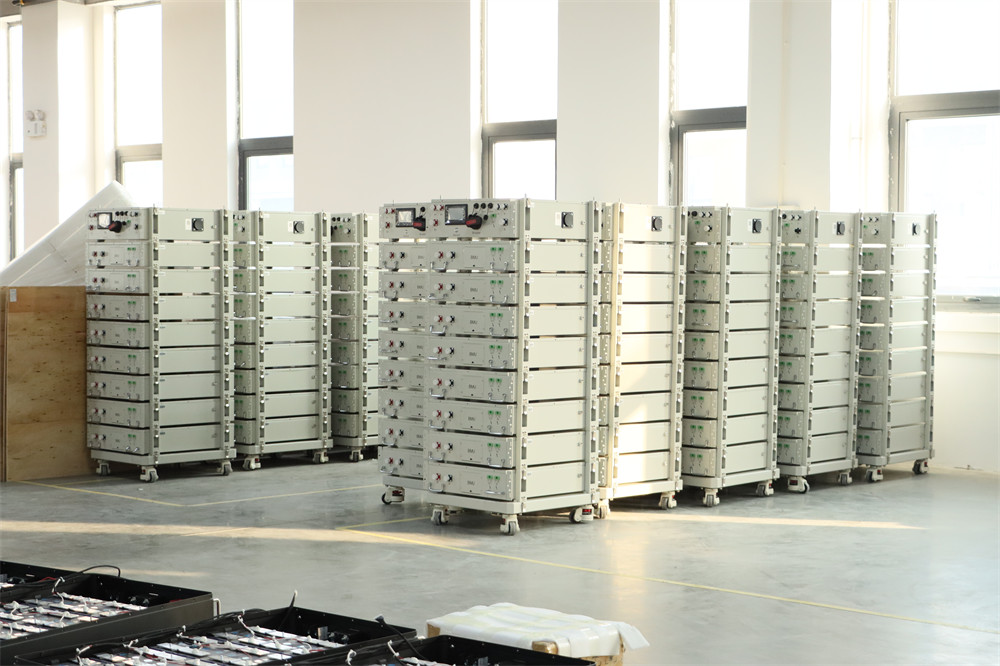

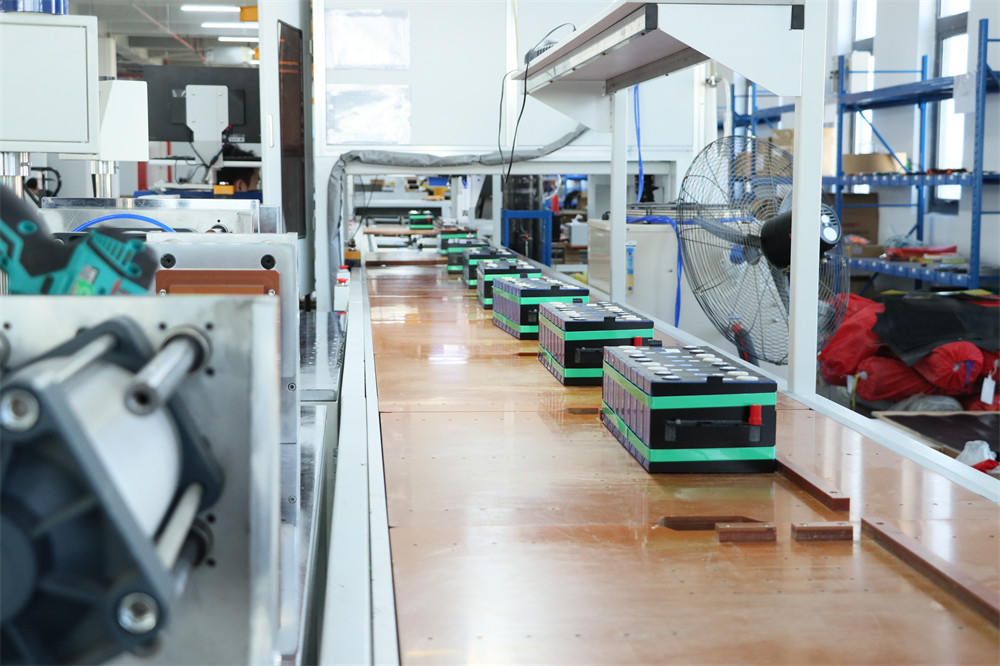

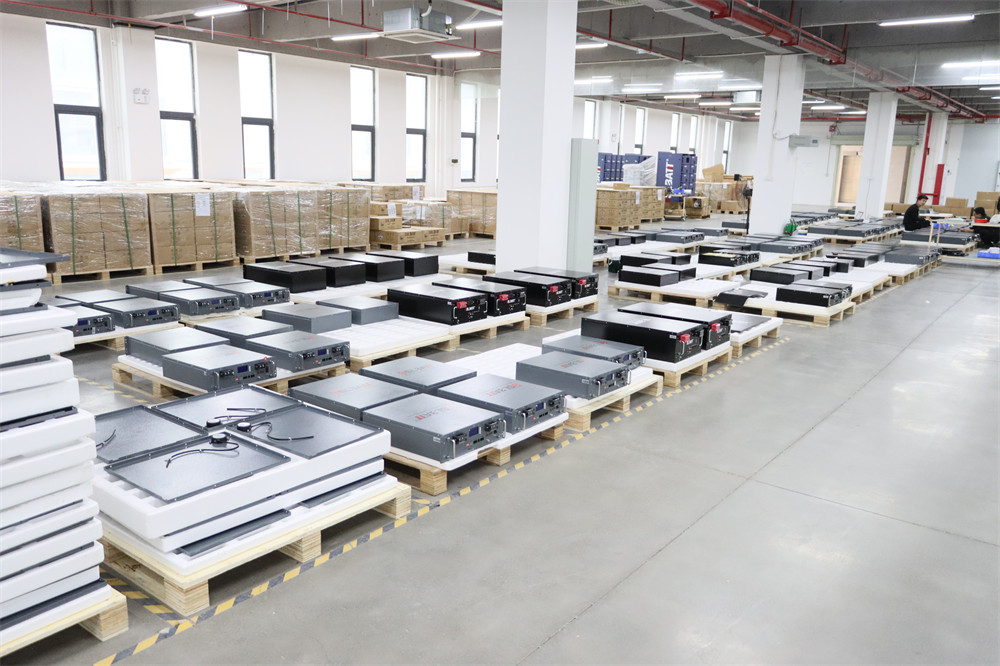

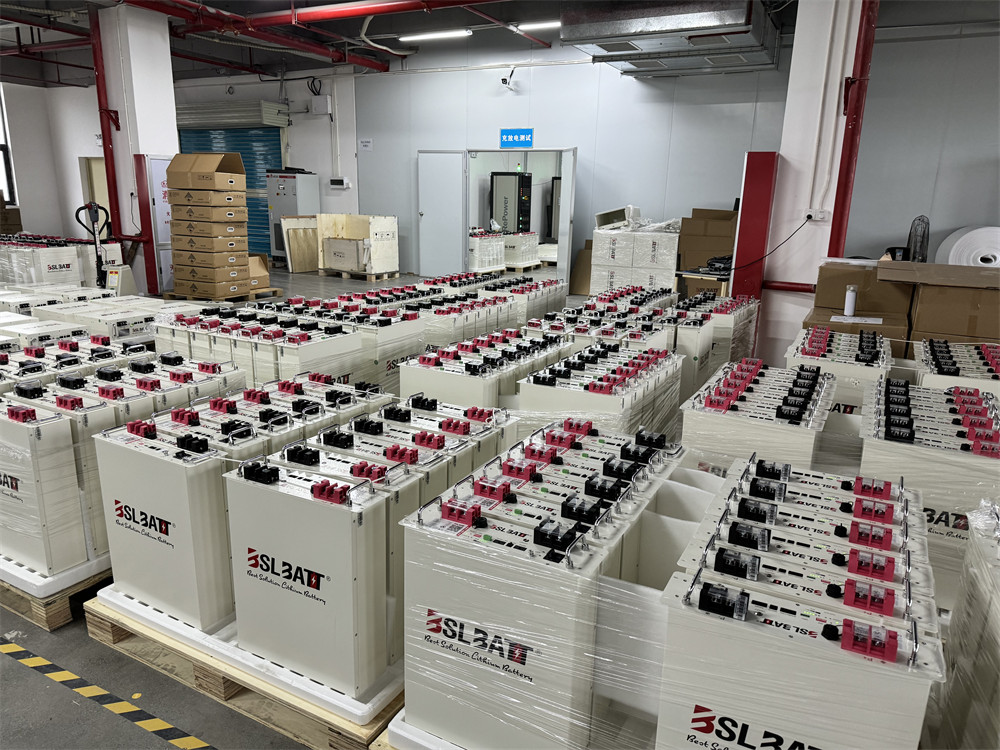

Factory Display
