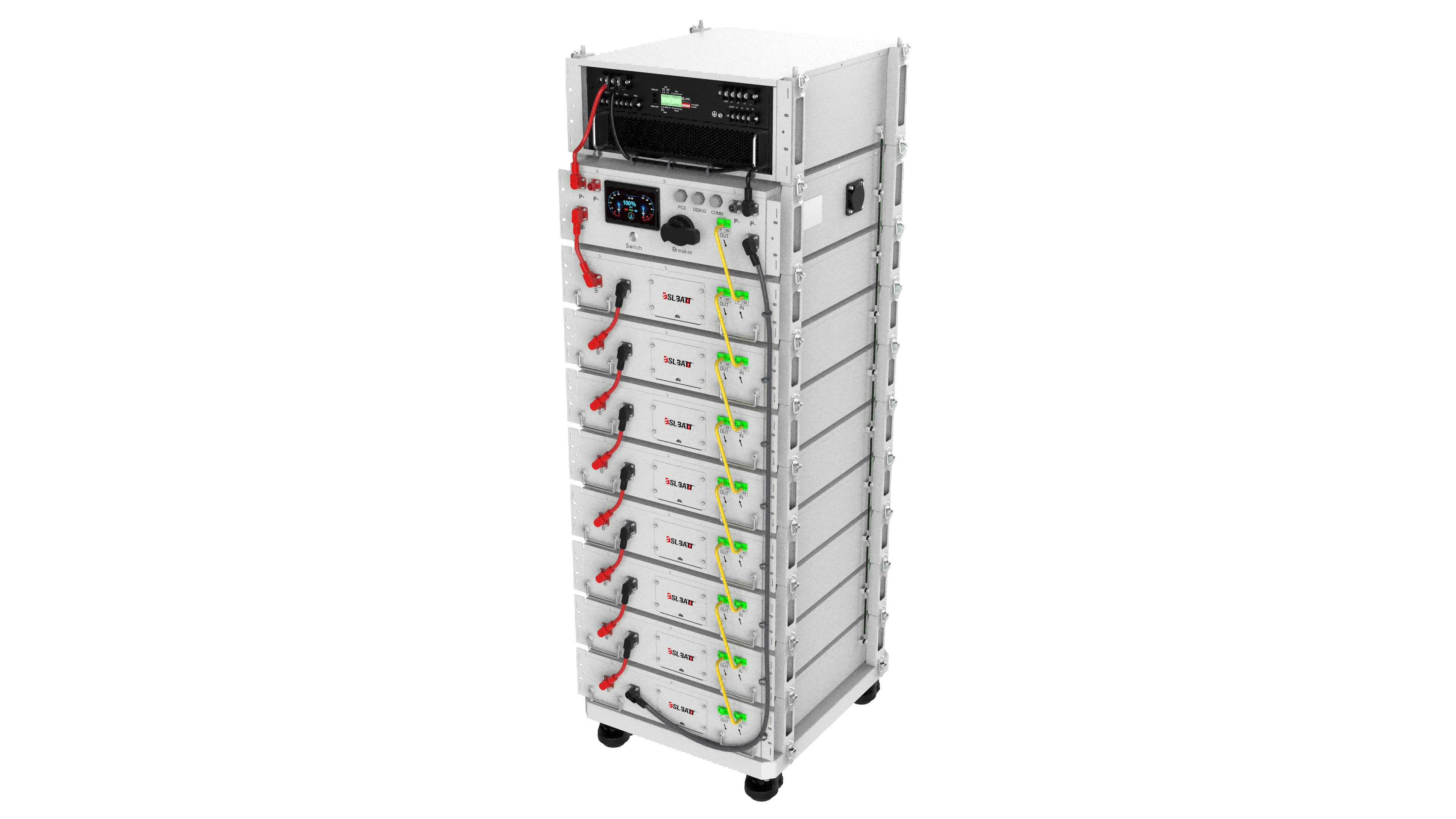

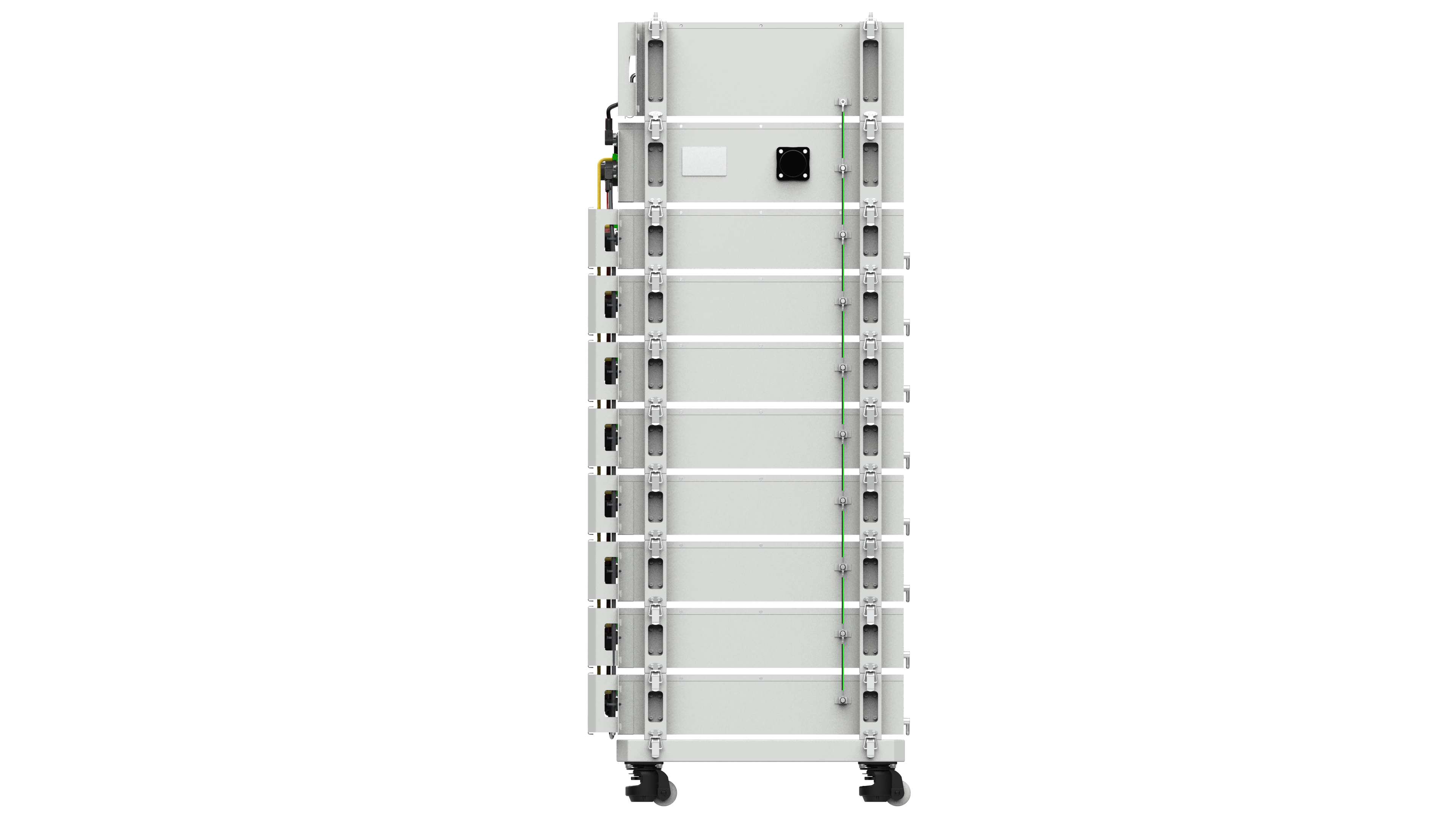

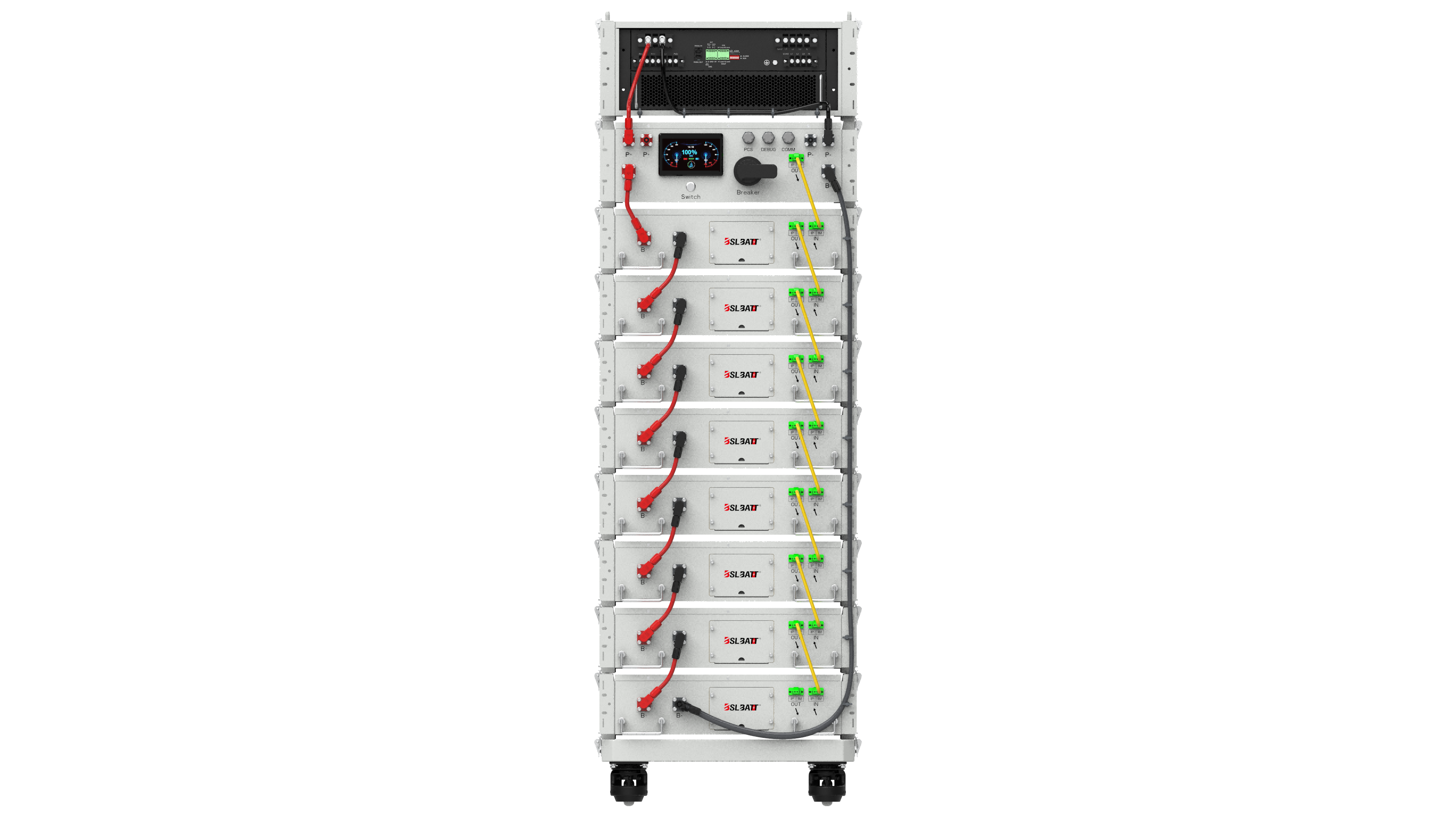

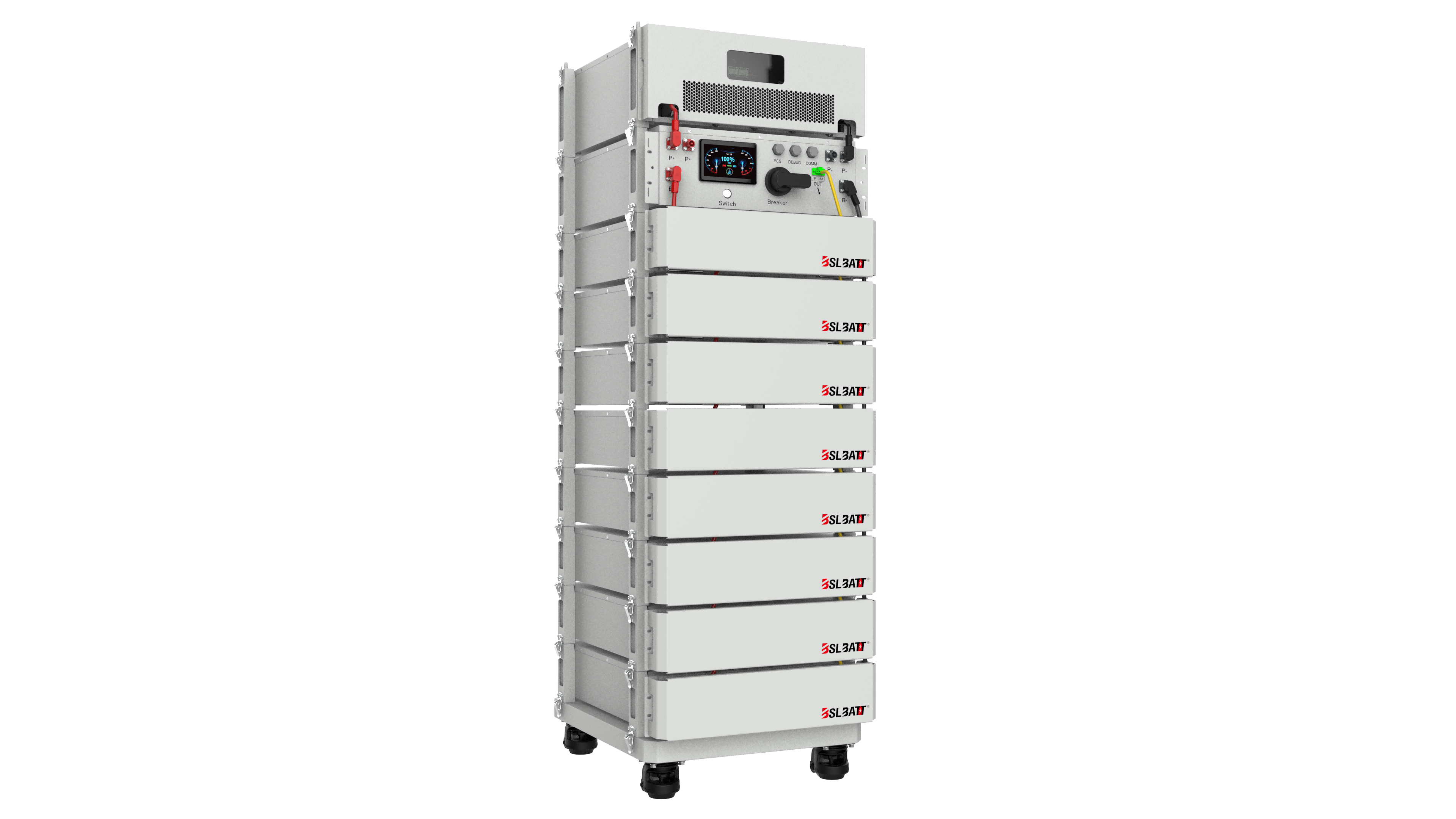

ESS-GRID DYNIO SERIES
60kWh-90kWh High Voltage Lithium Battery All-in-One ESS Battery
ESS-GRID DYNIO SERIES is a high-efficiency and high-reliability All-in-One ESS, combining a 30kW hybrid inverter, a high-voltage control box, and 60kWh / 70kWh / 80kWh / 90kWh lithium-ion battery modules. It is mainly developed for small- and medium-sized energy storage microgrids, and it supports PV access with an integrated EMS and off-grid switching device, and it supports parallel operation of several units. It supports parallel operation, oil-engine hybrid operation, and fast switching between on-grid and off-grid.
Main Features
- Over 6000 cycles @ 90% DOD
- Support seamless switching between parallel and off-grid (less than 5ms)
- Add as many battery modules as needed
- The noise level of the whole machine is less than 20dB
- Built-in Hybird Inverter, BMS, EMS, Battery bank
- Low standby power consumption ≤15W, no-load operation loss less than 100W
Why choose lithium batteries from BSLBATT®️?
A+ Cell Composition
Cooperating with the world's top three LFP Cell manufacturers, the battery cell features ultra-safe, explosion-proof, no leakage, and ultra-long cycle life
Smart BMS
The smart BMS can monitor battery operating status in real time and integrates a variety of safety features, including overcharge and deep discharge protection, voltage and temperature observation, overcurrent protection, cell monitoring and balancing, and overheating protection.
APP & Cloud Platform
BSLBATT APP & Cloud Platform offer dynamic power flow and generation reports with real-time monitoring, comprehensive visualization, multi-terminal compatibility, remote OTA upgrades, integrated after-sales service, and robust backup functions with data encryption to reduce maintenance costs and enhance security.
Most professional pre-sale and after-sale service
BSLBATT technical team has more than ten years of experience in the lithium battery industry, providing you with the most professional pre-sales as well as after-sales service. In addition, BSLBATT has branches in the United States, the Netherlands, Japan, Mexico and other places, and strives to develop a comprehensive global layout.
Residential ESS Solutions
| Battery Parameters | |||||
|---|---|---|---|---|---|
| Battery Model | HV PACK 8 | HV PACK 9 | HV PACK 10 | HV PACK11 | HV PACK12 |
| Number Of Battery Packs | 8 | 9 | 10 | 11 | 12 |
| Rated Voltage (V) | 460.8 | 518.4 | 576 | 633.6 | 691.2 |
| Voltage Range (V) | 410.4 -511.2 | 461.7-575.1 | 513.0-639.0 | 564.3-702.9 | 615.6-766.8 |
| Rated Energy (kWh) | 62.4 | 69.9 | 77.7 | 85.5 | 93.3 |
| Max. Discharging Current (A) | 67.5 | ||||
| Cycle Life | 6000 Cycles @90% DOD | ||||
| PV Parameter | |||||
| Inverter Model | INV C30 | ||||
| Maximum Power | 19.2kW+19.2kW | ||||
| Maximum PV Voltage | 850V | ||||
| PV Starting Voltage | 250V | ||||
| MPPT Voltage Range | 200V-830V | ||||
| Maximum PV Current | 32A+32A | ||||
| AC Side (Grid-connected) | |||||
| Rated Power | 30kVA | ||||
| Rated Current | 43.5A | ||||
| Rated Grid Voltage | 400V/230V | ||||
| Grid Voltage Range | -20%~15% | ||||
| Voltage Frequency Range | 50Hz/47Hz~52Hz | ||||
| 60Hz/57Hz~62Hz | |||||
| Voltage Harmonics | ＜5% (>30% Load) | ||||
| Power Factor | -0.8~0.8 | ||||
| AC Side (Off-grid) | |||||
| Rated Output Power | 30kVA | ||||
| Maximum Output Power | 33kVA | ||||
| Rated Output Current | 43.5A | ||||
| Maximum Output Current | 48A | ||||
| Rated Voltage | 400V/230V | ||||
| Unbalance | ＜3% (Resistive Load) | ||||
| Output Voltage Harmonics | 1 | ||||
| Frequency Range | 50/60Hz | ||||
| Output Overload (Current) | 48A＜I load ≤54A/100S | ||||
| 54A＜I load ≤65A/100S | |||||
| System Parameters | |||||
| Communication Por | EMS:RS485 Battery: CAN/RS485 | ||||
| DIDO | DI: 2-way DO: 2-way | ||||
| Maximum power | 97.80% | ||||
| Installation | Insertion Frame | ||||
| Loss | Standby <10W, No-load power <100W | ||||
| Dimension(W*L*H) | 586*713*1719 | 586*713*1874 | 586*713*2029 | 586*713*2184 | 586*713*2339 |
| Weight(kg) | 617 | 685 | 753 | 821 | 889 |
| Protection | IP20 | ||||
| Temperature Range | -30~60℃ | ||||
| Humidity Range | 5~95% | ||||
| Cooling | Intelligent Forced Air Cooling | ||||
| Altitude | 2000m (90%/80% reduction for 3000/4000 meters respectively) | ||||
| Certification | Inverter | CE / IEC62019 / IEC6100 / EN50549 | |||
| Battery | IEC62619 / IEC62040 /IEC62477 / CE / UN38.3 | ||||

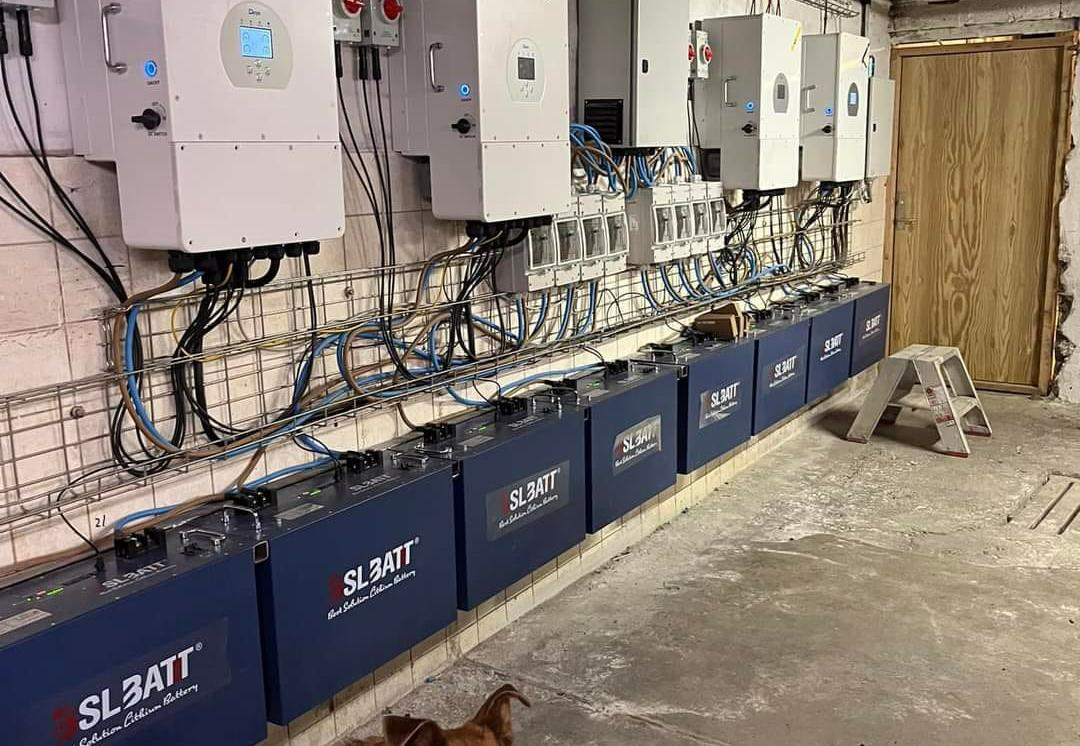

Completed Projects
