B-LFP48-200E

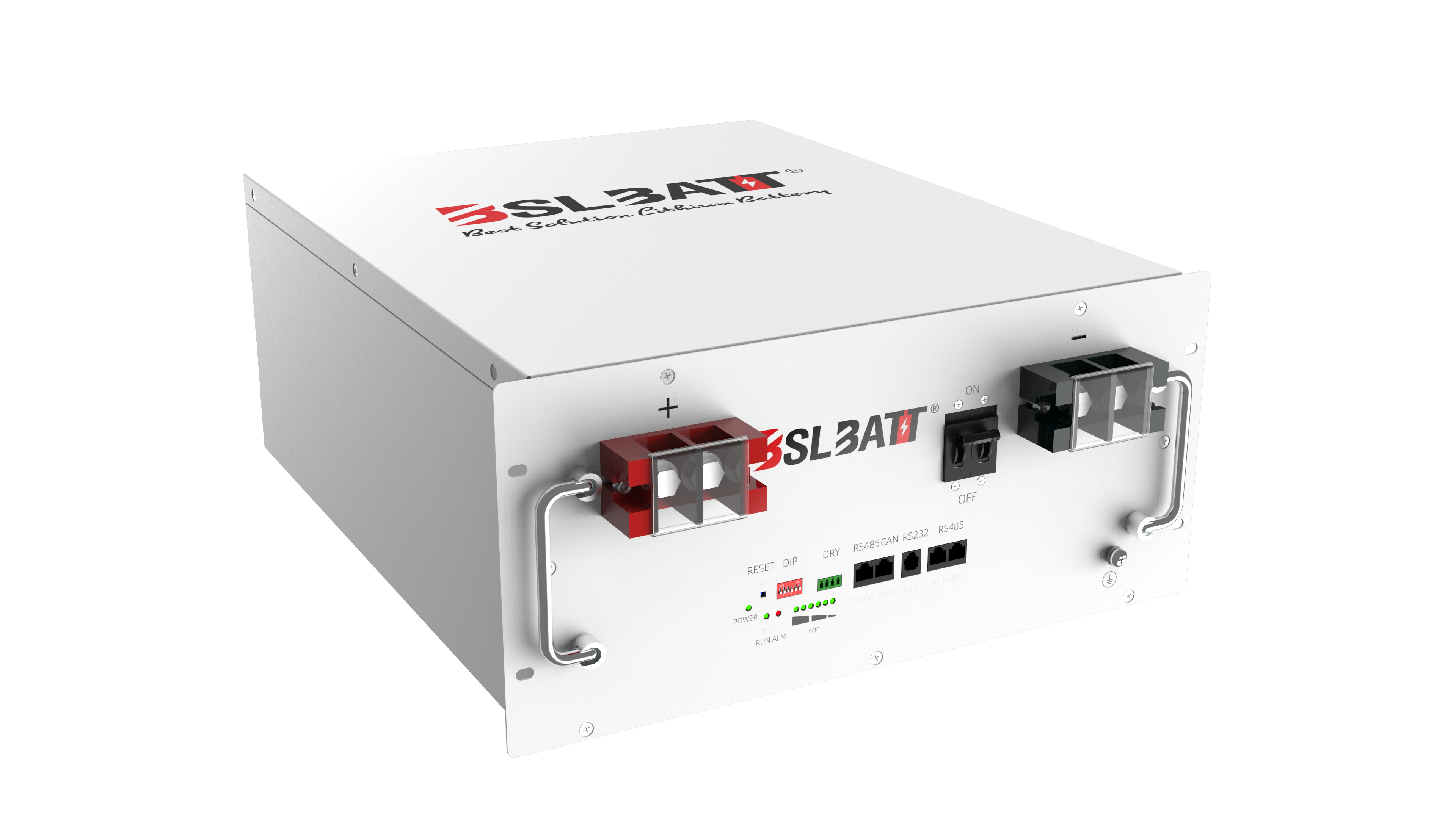

48V 200Ah LiFePO4 Server Rack Battery LiFePO4 Home Battery Storage
Discover the power of efficiency and flexibility with the BSLBATT 10kWh Lithium Battery, centered on Lithium Iron Phosphate battery technology. Designed for applications where space is limited or where multiple batteries need to be seamlessly integrated into a single system, our rack batteries redefine energy storage solutions for diverse needs.
B-LFP48-200E is a 48V server rack battery based on Lithium Iron Phosphate (Li-FePO4) technology with a longer life and over 6,000 cycles. The flexible rack design can be mounted with simple brackets and can support up to 63 modules in parallel, meeting the needs of a wide range of applications from residential to small commercial energy storage.
Main Features
- Cobalt-free lithium iron phosphate
- Built-in aerosol fire extinguisher
- Maximum Continuous 1C Discharge
- Over 6000 cycle life
- Parallel connection of max. 63 48V 200Ah batteries
- Modular design for quick stacking with our racks
- Remote AOT One Click Upgrade
- Wifi and Bluetooth function, APP Remote Monitoring
Why choose lithium batteries from BSLBATT®️?
A+ Cell Composition
Cooperating with the world's top three LFP Cell manufacturers, the battery cell features ultra-safe, explosion-proof, no leakage, and ultra-long cycle life
Smart BMS
The smart BMS can monitor battery operating status in real time and integrates a variety of safety features, including overcharge and deep discharge protection, voltage and temperature observation, overcurrent protection, cell monitoring and balancing, and overheating protection.
APP & Cloud Platform
BSLBATT APP & Cloud Platform offer dynamic power flow and generation reports with real-time monitoring, comprehensive visualization, multi-terminal compatibility, remote OTA upgrades, integrated after-sales service, and robust backup functions with data encryption to reduce maintenance costs and enhance security.
Most professional pre-sale and after-sale service
BSLBATT technical team has more than ten years of experience in the lithium battery industry, providing you with the most professional pre-sales as well as after-sales service. In addition, BSLBATT has branches in the United States, the Netherlands, Japan, Mexico and other places, and strives to develop a comprehensive global layout.
Residential ESS Solutions
| Model | B-LFP48-200E | |
|---|---|---|
| Battery Type | LiFePO4 | |
| Nominal Voltage (V) | 51.2 | |
| Nominal Capacity (Wh) | 10240 | |
| Usable Capacity (Wh) | 9216 | |
| Cell ＆ Method | 16S2P | |
| Dimension(mm)(W*H*D) | 590*483(442)*222 | |
| Weight(Kg) | 95 | |
| Discharge Voltage(V) | 47 | |
| Charge Voltage(V) | 55 | |
| Charge | Rate. Current / Power | 100A / 5.12kW |
| Max. Current / Power | 160A / 8.192kW | |
| Peak Current / Power | 210A / 10.752kW | |
| Rate. Current / Power | 200A / 10.24kW | |
| Max. Current / Power | 220A / 11.264kW, 1s | |
| Peak Current / Power | 250A / 12.80kW, 1s | |
| Communication | RS232, RS485, CAN, WIFI(Optional), Bluetooth(Optional) | |
| Depth Of Discharge(%) | 90% | |
| Expansion | up to 63 units in parallel | |
| Working Temperature | Charge | 0~55℃ |
| Discharge | -20~55℃ | |
| Storage Temperature | 0~33℃ | |
| Short Circuit Current/Duration Time | 350A, Delay time 500μs | |
| Cooling Type | Nature | |
| Protection Level | IP22 | |
| Monthly Self-discharge | ≤ 3%/month | |
| Humidity | ≤ 60% ROH | |
| Altitude(m) | ＜ 4000 | |
| Warranty | 10 Years | |
| Design Life | ＞ 15 Years（25℃ / 77℉） | |
| Cycle Life | ＞ 6000 cycles, 25℃ | |
| Certification & Safety Standard | UN38.3,IEC62619 | |
