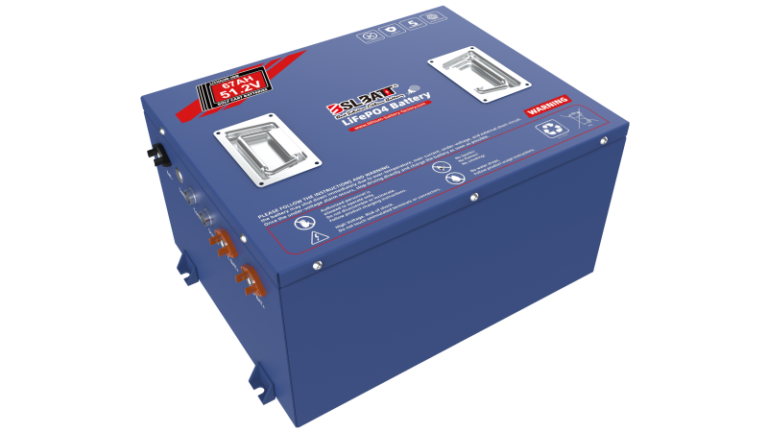

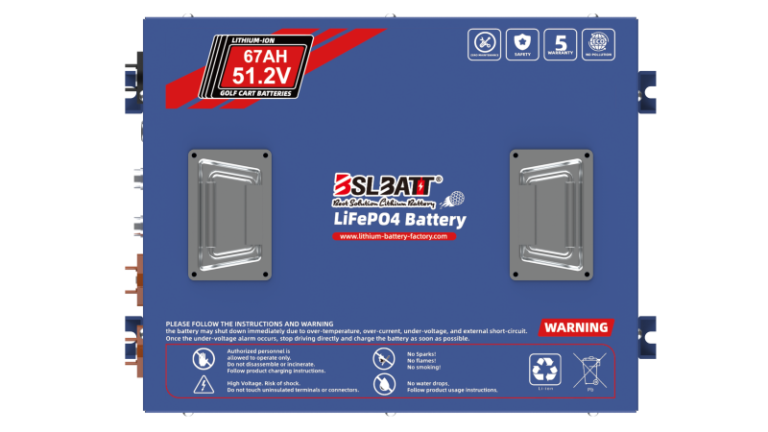

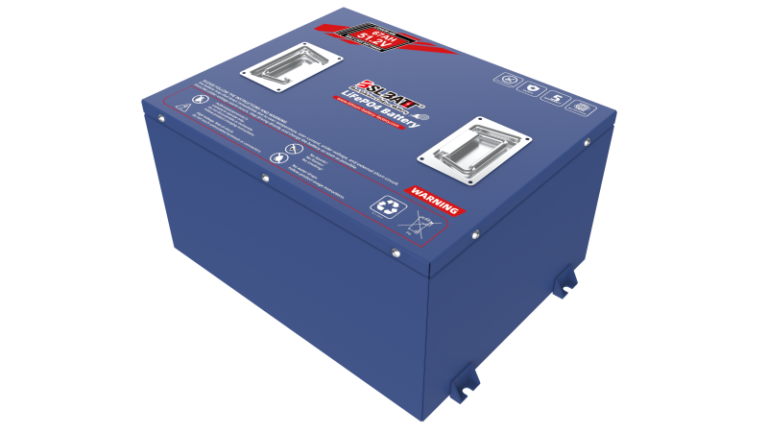

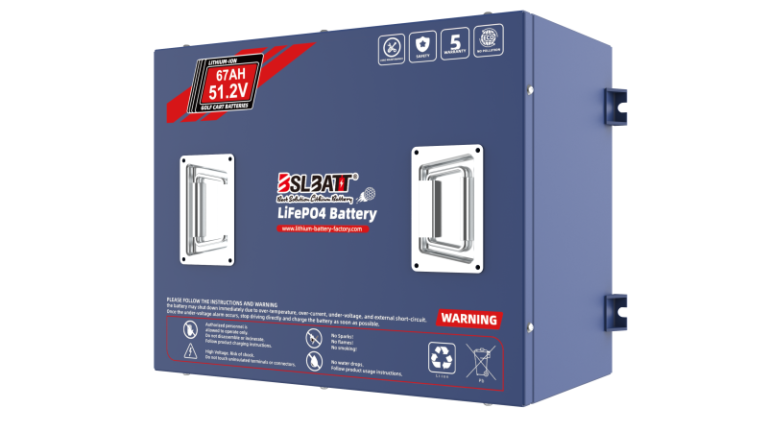

B-LFP48-67GC
48V Lithium-ion Golf Cart Battery 67Ah Deep-cycle Battery
Nominal Voltage: 51.2V
Nominal Capacity: 67Ah
Weight: 70lbs/32kg
Maximum Discharge 10S: 200A
Dimension(L*W*H): 440*333*222mm
Cycle Life: ≥3500 @80%DOD
Nominal Energy: 3.43kWh
Estimated Mileage: 25-35 miles/40-65km
Casing Material: Iron
Elevate your golf cart performance with the BSLBATT 48V lithium-ion golf cart battery, providing extended runtime, rapid recharging, and exceptional reliability.
48V 67Ah lithium-ion golf cart battery will provide excellent speed and effortlessly handle rough ground, allowing your golf cart to enjoy a range of up to 40 miles on a single full charge. The built-in BMS provides powerful protection against overcharging, overdischarging, overcurrent, temperature extremes and short circuits. Its fireproof, shockproof and IP67 waterproof metal housing ensures durability and maintenance-free operation.
Product Parameters
ELECTRICAL SPECIFICATIONS
| Battery Types | Lithium-iron (LFP) |
| Rated Capacity | 67Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 40V~57.6V |
| System Capacity | 3.430 KWh |
| Battery Group Solution | 1P16S |
| IP Protection Level | Battery system IP54 |
| Cycle Life | > 3500 times @80%DOD |
| Battery System Weight | 34KG |
| Calendar Life | 12 years |
PHYSICALSPECIFICATIONS
| Battery Pack Factory SOC | 50% |
| Battery SOC Operating Range | 0-100% |
| Insulation Requirements | ≥20MΩ/1000VDC |
| The Power Consumption Of The BMS | ≤3W |
| SOC Theory Estimation Accuracy | ±5% |
| Unit Voltage Acquisition Accuracy | ±5mV |
| Temperature Acquisition Accuracy | ±2℃ |
| Current Acquisition Accuracy | ≤ ± 0.5% FSR |
| Equalizing Current | ≤ 100mA |
DISCHARGE SPECIFICATIONS
| Maximum Continuous Charging Current | 40A (10℃~45℃, 5%＜SOC＜80%) |
| Maximum Continuous Discharging Current | 80A (5℃~50℃, SOC＞20%) |
| Maximum Instantaneous Charging Current (10S) | 65A (10℃~45℃, 5%＜SOC＜80%) |
| Maximum Instantaneous Discharging Current (10S) | 150A (5℃~50℃, SOC＞20%) |
| Standard Charging Current Is Recommended | ＜30A |
| Self-discharge Rate/Month (25℃, SOC100 %) | ＜3% |
TEMPERATURE SPECIFICATIONS
| Charge Temperature | 0°C to 50°C / 32°F to 131°F |
| Discharge Temperature | -20°C to 55°C / -4°F to 131°F |
Main Features
Fast-charging
Fast charging times and a 99% efficient charging process means less wasted power and more savings for you.
More Useable Capacity
A 25-50% higher capacity than lead- acid batteries with full power available throughout discharge.
Vibration And Shock Resistance
Good anti-vibration performance to prevent accidental battery failure caused by vibration, thus extending battery life.
Extremely Safe
Inherently safe chemical composition LiFePO4, which has very high thermal and chemical stability, BMS provides additional protection.
Intelligence
Multiple Microprocessors, State of Charge Gauge with Aging Compensation, Current Sensor, Fuse, CAN Bus.
5-year Warranty
To give you a worry-free buying experience and make it easier to start your golf cart, we offer a 5-year warranty policy.
The Best Energy Solutions for Motive Power Batteries
BSLBATT provides one-stop solutions for different industries with material handling or low-speed power vehicles, including forklifts, golf carts, AWPs and motorboats, etc. Contact us to reduce your costs, enhance efficiency, and create value!
Why Choose Golf Cart Batteries From BSLBATT®️?
Grade A Battery Cells
BSLBATT®️ lithium-ion batteries are designed to provide unmatched performance and reliability in a wide range of applications, with a life expectancy of up to 3,000 charge cycles and 80% depth of discharge for exceptional durability and longevity.
Smart BMS
BSLBATT®️BMS offers a range of battery protection features, including robust protections for individual battery cells, diligent monitoring of cell voltage and temperature, as well as precise monitoring of pack voltage and current. In addition, the BMS enables the user to control the charging and discharging process of the battery pack while providing accurate state of charge (SOC) percentage calculations to optimize battery management.
Real Time Data Detection
You can monitor your battery’s state of charge, voltage, current, operating hours, and fault checking in real time and other important information through the display. With real-time data, you can make informed decisions to optimize battery performance.
Compatible Chargers
Chargers greatly enhance battery safety and longevity with strong protection against overcharge, overvoltage and short-circuit. In addition, these chargers are IP67 classified and have excellent dust and water resistance, making them ideal for outdoor use in a wide range of conditions.
Compatible with All Brands of Golf Carts
Follow BSLBATT's Youtube for more information on lithium batteries!
FAQs
How do I get the longest battery life out of my LiFePO4 battery?
LiFePO4 batteries should be “topped off” after each use. For greatest longevity, We recommend not fully discharging the battery or overcharging it.
Can I use a lead battery charger?
Store BSLBATT Lithium batteries in a cool dry place, and be sure to fully charge them before storage. If storing it for an extended period of time, we advise charging them up at regular intervals–typically “topping off” every month or every other month.
How should I store my battery?
Store BSLBATT Lithium batteries in a cool dry place, and be sure to fully charge them before storage. If storing it for an extended period of time, we advise charging them up at regular intervals–typically “topping off” every month or every other month.
How long will it take to charge?
The length of time it takes to charge a li-ion battery depends on the type and size of your charging source.
Our recommended charge rate is 50 amps per 100 Ah battery in your system. For example, if your charger is 20 amps and you need to charge an empty battery, it will take 5 hours to reach 100%.
I want to convert to lithium iron phosphate batteries. What do I need to know?
As for battery replacement, you need to consider capacity, power, and size requirements, as well as making sure you have the right charger.
Can I use BSLBATT LITHIUM in temperatures below 0°C(37°F)?
Yes. You can discharge BSLBATT LITHIUM down to -20°C. However, only charge BSLBATT LITHIUM when the battery temperature is 0°C or higher.
Can your battery get wet?
The batteries are sealed and can handle being in a moist environment. Like any other electronics, you should not submerge them in water.
How can I charge a LiFePO4 battery?
You can use any standard charger, solar or wind charge controller to charge our LiFePO4 battery.
