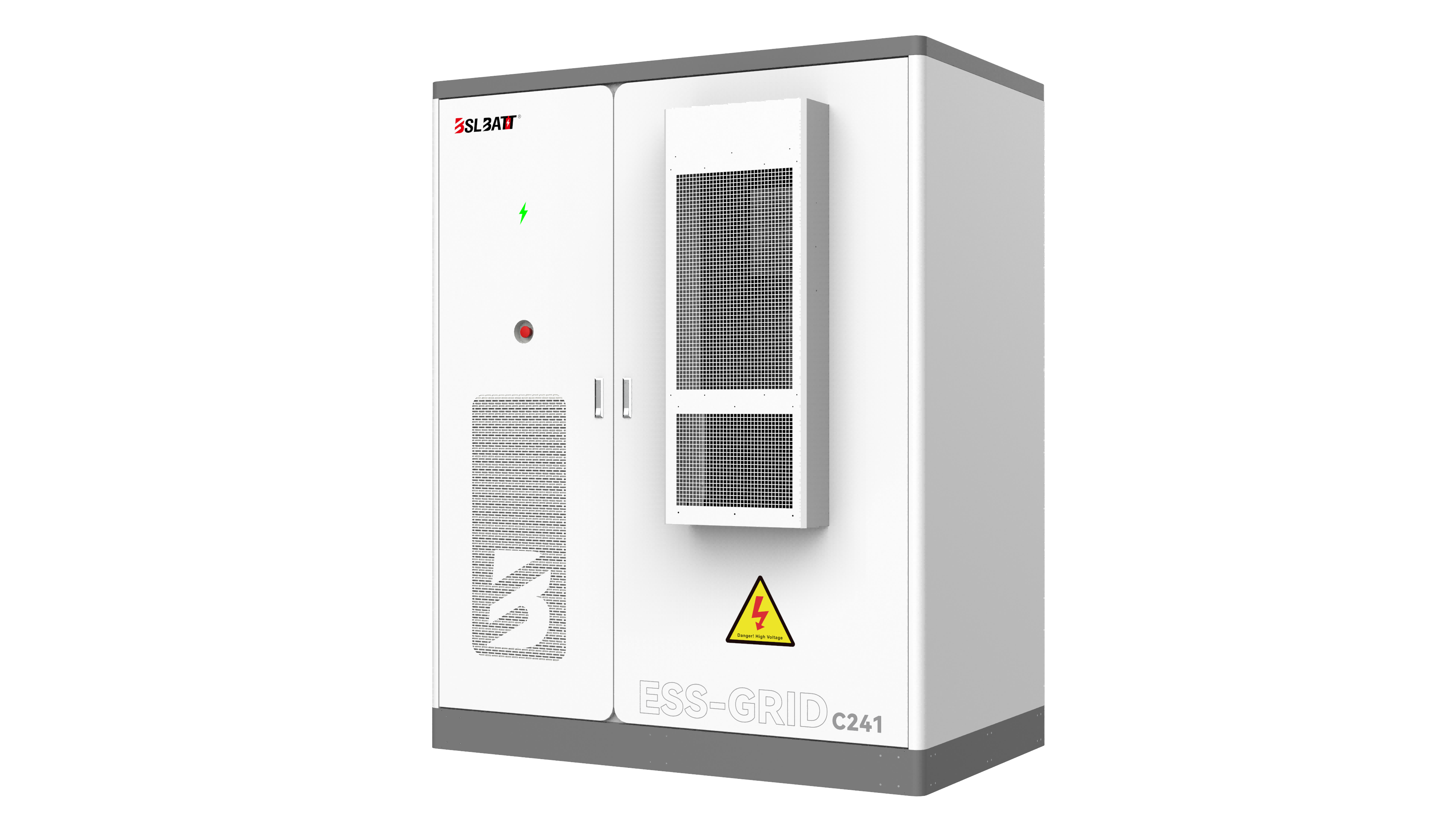

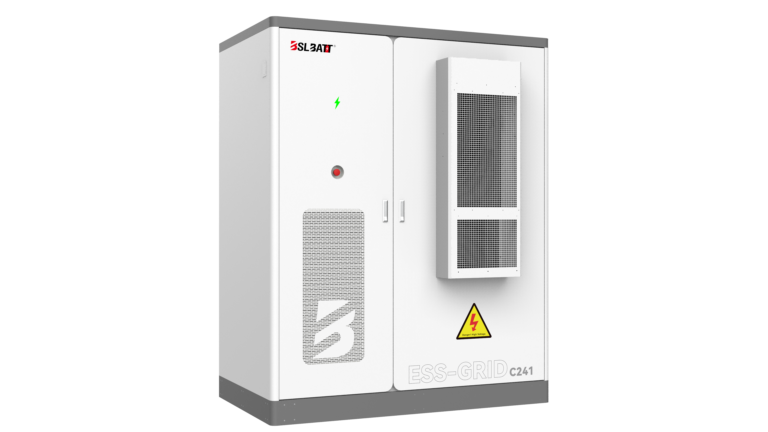

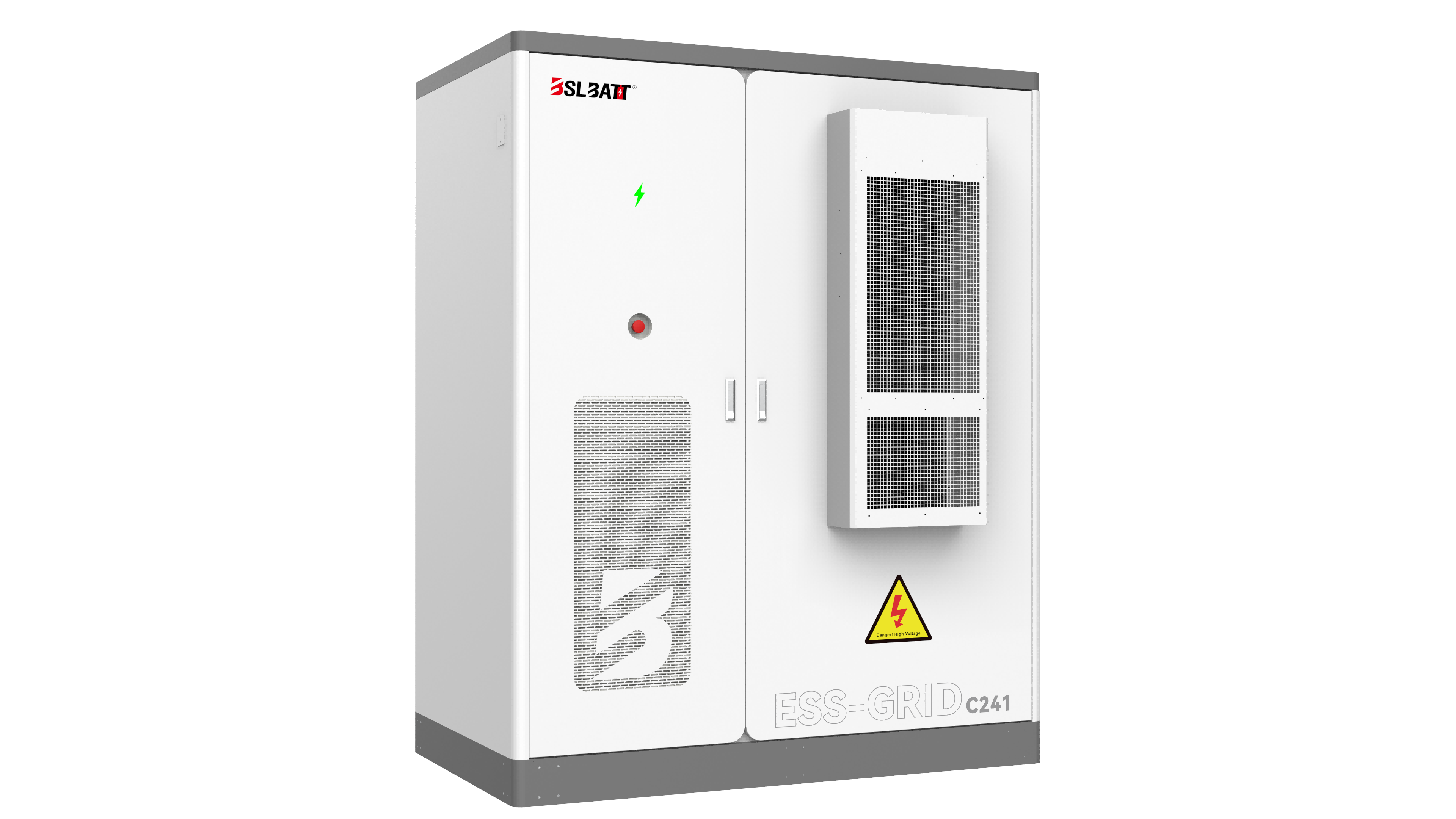

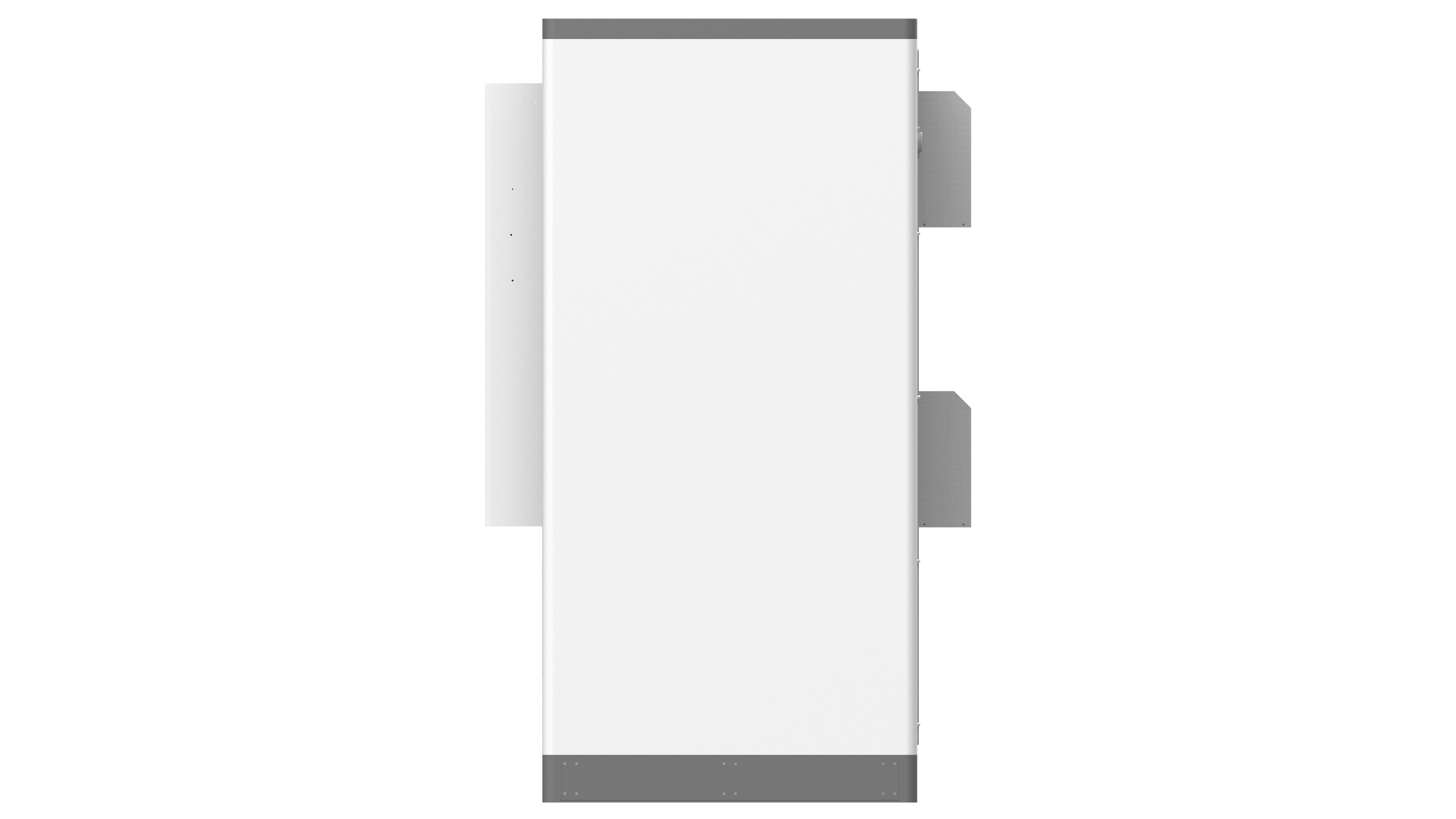

ESS-GRID C200/C215/C225/C245
200kWh-241kWh High Voltage Lithium Battery Energy Storage System
BSLBATT ESS-GRID Cabinet Series is an industrial and commercial energy storage system available in capacities of 200kWh, 215kWh, 225kWh, and 245kWh. It offers peak shaving, energy backup, demand response, and increased solar ownership capabilities. Additionally, this energy storage system supports grid-tied, off-grid, and hybrid solar systems and can be used with diesel generators. This versatile system is widely applicable in farms, ranches, hotels, schools, warehouses, communities, and solar parks.
Main Features
- The system is fully productized, integrating LFP ESS batteries, PCS , EMS, FSS, TCS, IMS, BMS.
- Comprised of Tier one A+ LFP Cell with over 6000 cycles and a service life of over 10 years.
- Integration of all energy storage system components, the output of which can be directly connected to the utility and photovoltaic systems. Multiple cabinets can be connected in parallel to realize the expansion of the energy storage system.
- The display is able to present the instant status of each module in a stereoscopic three-dimensional way, providing an intuitive and interactive monitoring experience.
- Optional PV charging module, off-grid switching module, inverter, STS and other accessories are available for microgrid and other application scenarios.
- The local control screen enables diverse functions, including system operation monitoring, energy management strategy formulation, remote device upgrades, and more.
Why choose lithium batteries from BSLBATT®️?
A+ Cell Composition
Cooperating with the world's top three LFP Cell manufacturers, the battery cell features ultra-safe, explosion-proof, no leakage, and ultra-long cycle life
Smart BMS
The smart BMS can monitor battery operating status in real time and integrates a variety of safety features, including overcharge and deep discharge protection, voltage and temperature observation, overcurrent protection, cell monitoring and balancing, and overheating protection.
APP & Cloud Platform
BSLBATT APP & Cloud Platform offer dynamic power flow and generation reports with real-time monitoring, comprehensive visualization, multi-terminal compatibility, remote OTA upgrades, integrated after-sales service, and robust backup functions with data encryption to reduce maintenance costs and enhance security.
Most professional pre-sale and after-sale service
BSLBATT technical team has more than ten years of experience in the lithium battery industry, providing you with the most professional pre-sales as well as after-sales service. In addition, BSLBATT has branches in the United States, the Netherlands, Japan, Mexico and other places, and strives to develop a comprehensive global layout.
| Item | General Parameter | |||
|---|---|---|---|---|
| Model | ESS-GRID C200 | ESS-GRID C215 | ESS-GRID C225 | ESS-GRID C245 |
| System Parameter | 100kW/200kWh | 100kW/215kWh | 125kW/225kWh | 125kW/241kWh |
| Cooling Method | Air-cooled | |||
| Battery Parameters | ||||
| Rated Battery Capacity | 200.7kWh | 215kWh | 225kWh | 241kWh |
| Rated System Voltage | 716.8V | 768V | 716.8V | 768V |
| Battery Type | Lithium lron Phosphate Battery (LFP) | |||
| Cell Capacity | 280Ah | 314Ah | ||
| Battery Connection Method | 1P*16S*14S | 1P*16S*15S | 1P*16S*14S | 1P*16S*15S |
| PV Parameters (Optional; none /50kW/150kW) | ||||
| Max. PV Input Voltage | 1000V | |||
| Max. PV Power | 100kW | |||
| MPPT Quantity | 2 | |||
| MPPT Voltage Range | 200-850V | |||
| MPPT Full Load Open Circuit Voltage | 345V-580V | 345V-620V | 360V-580V | 360V-620V |
| Range (Recommended)* | ||||
| AC Parameters | ||||
| Rated AC Power | 100kW | |||
| Nominal AC Current Rating | 144 | |||
| Rated AC Voltage | 400Vac/230Vac ,3W+N+PE /3W+PE | |||
| Rated Frequency | 50Hz/60Hz(±5Hz) | |||
| Total Current Harmonic Distortion (THD) | <3% (Rated Power) | |||
| Power Factor Adjustable Range | 1 Ahead ~ +1 Behind | |||
| General Parameters | ||||
| Protection Level | IP54 | |||
| Fire Protection System | Aerosols / Perfluorohexanone / Heptafluoropropane | |||
| Isolation Method | Non-isolated (Optional Transformer) | |||
| Operating Temperature | -25℃~60℃ (>45℃ derating) | |||
| Poster Height | 3000m(>3000m Derating) | |||
| Communication Interface | RS485/CAN2.0/Ethernet/Dry contact | |||
| Dimension (L*W*H) | 1800*1100*2300mm | |||
| Weight (With Batteries Approx.) | 2350kg | 2400kg | 2450kg | 2520Kg |
| Certification | ||||
| Electric Safety | IEC62619/IEC62477/EN62477 | |||
| EMC (Electromagnetic Compatibility) | IEC61000/EN61000/CE | |||
| Grid-connected And Islanded | IEC62116 | |||
| Energy Efficiency And The Environment | IEC61683/IEC60068 | |||
