ESS-BATT 96C/103C/110C
96kWh 100kWh 110kWh Industrial Energy Solutions Solar Battery Energy Storage System

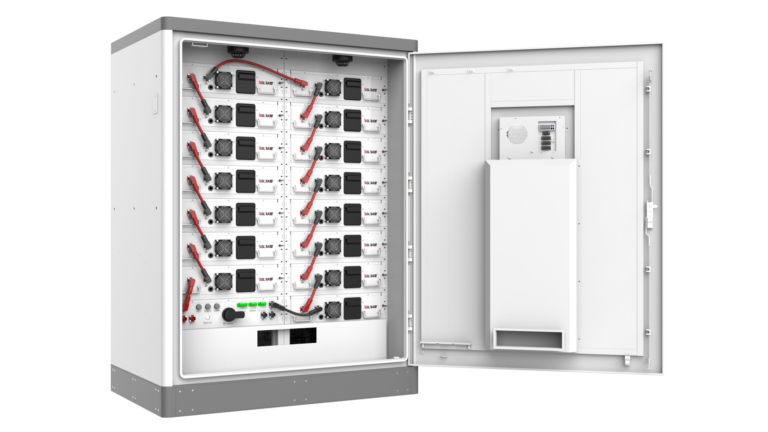

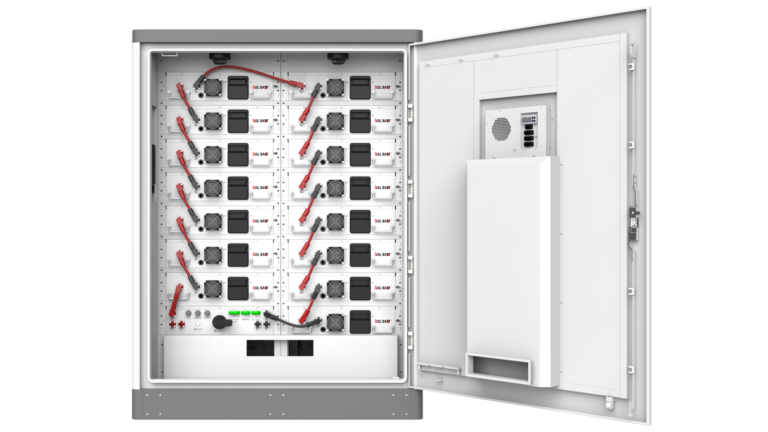

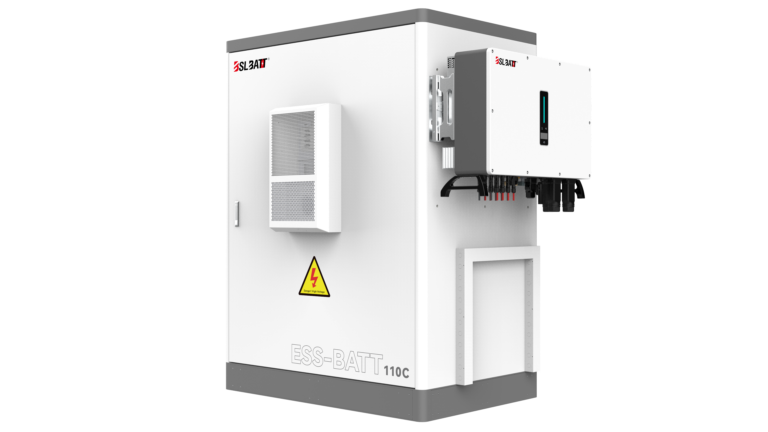

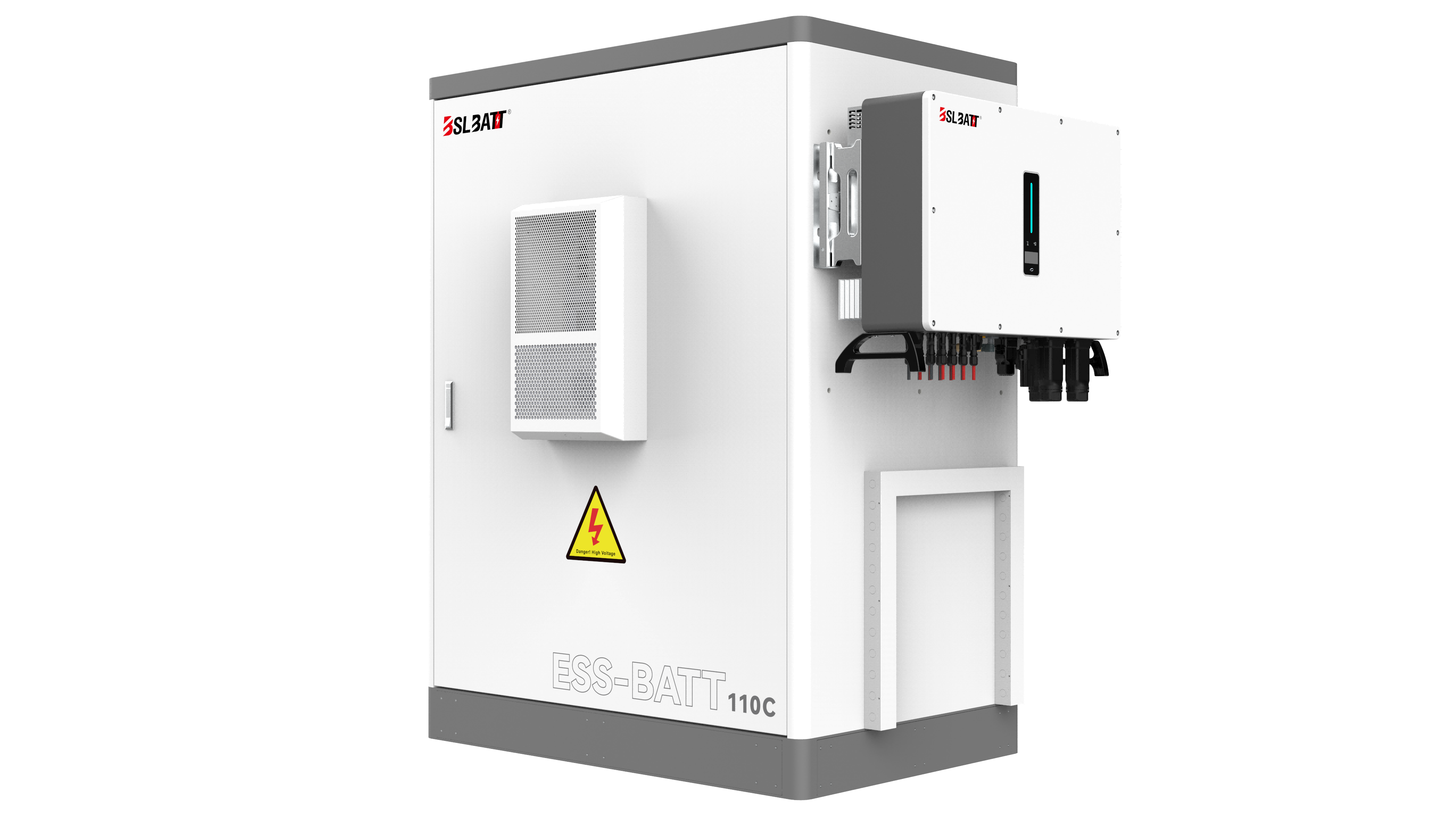

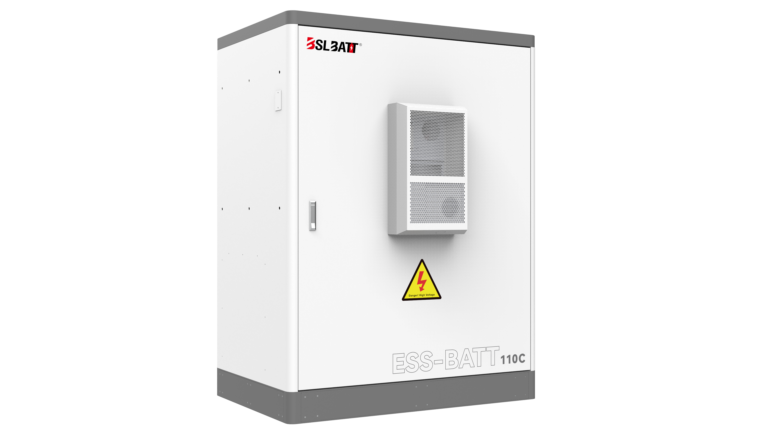

With three capacity options of 96kWh, 100kWh, and 110kWh, BSLBATT ESS-BATT Cubincon series is a solar battery storage system designed for industrial and commercial applications. It effectively supports community solar systems, rural microgrids, hospitals, schools, and small manufacturers. In addition, ESS-BATT Cubincon series uses high-performance lithium iron phosphate (LiFePO4) batteries and a shock-resistant protective housing to ensure durability and longevity in extreme environments.
Main Features
- Over 6000 cycles @ 80% DOD
- Expandable by parallel connection
- Built-in BMS, EMS, FSS, TCS, IMS
- IP54 Industrial-strength housing to withstand harsh weather conditions
- Adopting 280Ah/314Ah high capacity battery cell, energy density 130Wh/kg
- Safe and environmentally friendly, higher thermal stability
Why choose lithium batteries from BSLBATT®️?
A+ Cell Composition
Cooperating with the world's top three LFP Cell manufacturers, the battery cell features ultra-safe, explosion-proof, no leakage, and ultra-long cycle life
Smart BMS
The smart BMS can monitor battery operating status in real time and integrates a variety of safety features, including overcharge and deep discharge protection, voltage and temperature observation, overcurrent protection, cell monitoring and balancing, and overheating protection.
APP & Cloud Platform
BSLBATT APP & Cloud Platform offer dynamic power flow and generation reports with real-time monitoring, comprehensive visualization, multi-terminal compatibility, remote OTA upgrades, integrated after-sales service, and robust backup functions with data encryption to reduce maintenance costs and enhance security.
Most professional pre-sale and after-sale service
BSLBATT technical team has more than ten years of experience in the lithium battery industry, providing you with the most professional pre-sales as well as after-sales service. In addition, BSLBATT has branches in the United States, the Netherlands, Japan, Mexico and other places, and strives to develop a comprehensive global layout.
| Item | General Parameter | ||
|---|---|---|---|
| Model | ESS-BATT 96C | ESS-BATT 100C | ESS-BATT 110C |
| Model | 16S1P*14=224S1P | 16S1P*15=240S1P | 16S1P*16=256S1P |
| Cooling Method | Air-cooling | ||
| Rated Capacity | 135Ah | ||
| Rated Voltage | DC716.8V | DC768V | DC819.2V |
| Operating Voltage Range | 560V~817.6V | 600V~876V | 640V~934.64V |
| Voltage Range | 627.2V~795.2V | 627.2V~852V | 716.8V~908.8V |
| Battery Energy | 96.76kWh | 103.68kWh | 110.559kWh |
| Rated Charge Current | 135A | ||
| Rated Discharge Current | 135A | ||
| Peak Current | 200A(25℃, SOC50%, 1min) | ||
| Protection Level | IP54 | ||
| Firefighting Configuration | Pack level + Aerosol | ||
| Discharge Temp. | -20℃~55℃ | ||
| Charge Temp. | 0℃~55℃ | ||
| Storage Temp. | 0℃~35℃ | ||
| Operating Temp. | -20℃~55℃ | ||
| Cycle Life | ＞6000 Cycles (80% DOD @25℃ 0.5C) | ||
| Dimension(mm) | 1150*1100*2300(±10) | ||
| Weight(With Batteries Approx.) | 1085Kg | 1135Kg | 1185Kg |
| Communication Protocol | CAN/RS485 ModBus/TCP/IP/RJ45 | ||
| Noise Level | ＜65dB | ||
| Functions | Pre-charge, Over-Less Voltage/Over-Less Temperature Protection, | ||
| Cells Balancing/SOC-SOH Calculation etc. | |||
