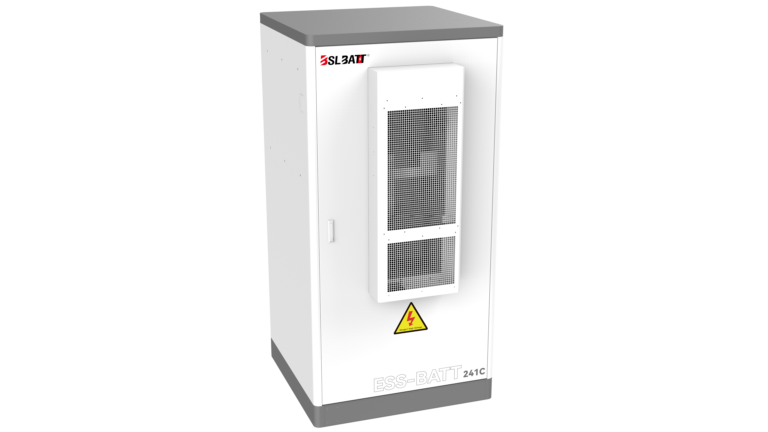

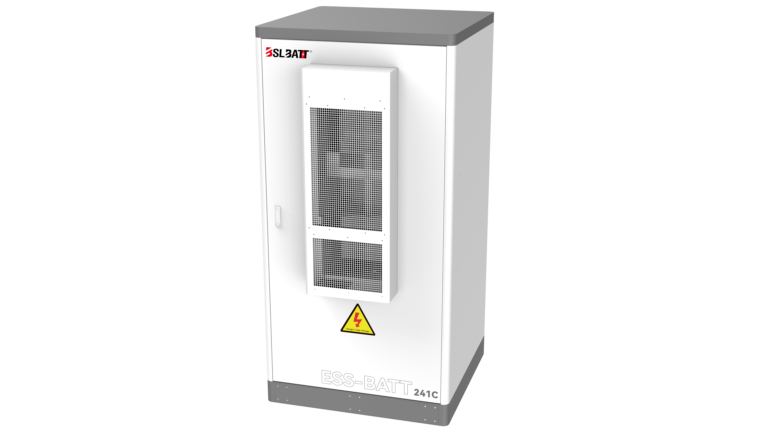

ESS-BATT 200C/215C/225C/241C
200kWh-241kWh High Voltage Lithium Solar Battery Storage
BSLBATT commercial solar battery storage offers a substantial energy storage capacity, adjustable from 200kWh to 241kWh through battery combinations. It features an IP54 protection rating, making it suitable for installation in sheltered outdoor areas. Equipped with air-conditioned cooling units, it helps reduce maintenance costs.
Main Features
- Over 6000 cycles @ 80% DOD
- Expandable by parallel connection
- Built-in BMS, EMS, FSS, TCS, IMS
- IP54 Industrial-strength housing to withstand harsh weather conditions
- Adopting 280Ah/314Ah high capacity battery cell, energy density 130Wh/kg
- Safe and environmentally friendly, higher thermal stability
Why choose lithium batteries from BSLBATT®️?
A+ Cell Composition
Cooperating with the world's top three LFP Cell manufacturers, the battery cell features ultra-safe, explosion-proof, no leakage, and ultra-long cycle life
Smart BMS
The smart BMS can monitor battery operating status in real time and integrates a variety of safety features, including overcharge and deep discharge protection, voltage and temperature observation, overcurrent protection, cell monitoring and balancing, and overheating protection.
APP & Cloud Platform
BSLBATT APP & Cloud Platform offer dynamic power flow and generation reports with real-time monitoring, comprehensive visualization, multi-terminal compatibility, remote OTA upgrades, integrated after-sales service, and robust backup functions with data encryption to reduce maintenance costs and enhance security.
Most professional pre-sale and after-sale service
BSLBATT technical team has more than ten years of experience in the lithium battery industry, providing you with the most professional pre-sales as well as after-sales service. In addition, BSLBATT has branches in the United States, the Netherlands, Japan, Mexico and other places, and strives to develop a comprehensive global layout.

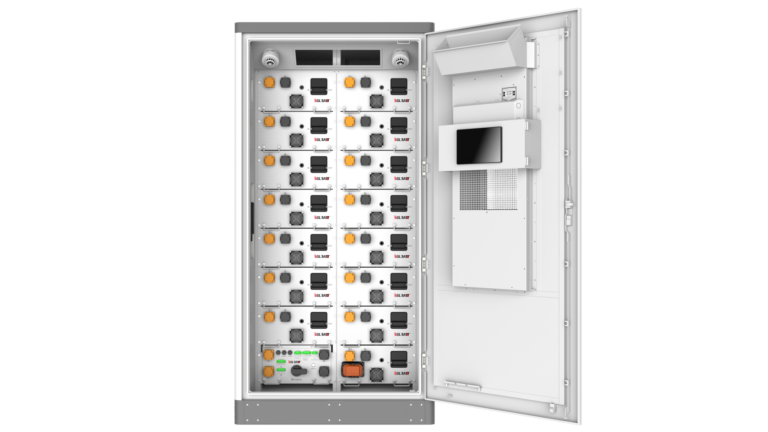

The energy storage battery system is housed in an outdoor cabinet and is equipped with modules for temperature control, Battery Management System (BMS), Energy Management System (EMS), smoke detection, and fire protection. Internally, the DC side of the battery is pre-wired, leaving only the AC connections and external communication cables to be installed on-site. Each battery pack, composed of 3.2V 280Ah or 314Ah Li-Iron Phosphate cells, is configured as 16SIP, resulting in an actual voltage of 51.2V.
Integrated solutions with high-voltage three-phase hybrid inverters include recharging batteries from the grid during low electricity prices and utilizing them when prices are high, providing backup power during outages to enhance energy independence. Designed for straightforward installation, upgrades, and integration with existing solar PV systems, with monitoring and control accessible through user-friendly apps.
| Item | General Parameter | |||
|---|---|---|---|---|
| Model | 16S1P*14=224S1P | 16S1P*15=240S1P | 16S1P*14=224S1P | 16S1P*15=240S1P |
| Cooling Method | Air-cooling | |||
| Rated Capacity | 280Ah | 314Ah | ||
| Rated Voltage | DC716.8V | DC768V | DC716.8V | DC768V |
| Operating Voltage Range | 560V~817.6V | 600V~876V | 560V~817.6V | 600V~876V |
| Voltage Range | 627.2V~795.2V | 627.2V~852V | 627.2V~795.2V | 627.2V~852V |
| Battery Energy | 200kWh | 215kWh | 225kWh | 241kWh |
| Rated Charge Current | 140A | 157A | ||
| Rated Discharge Current | 140A | 157A | ||
| Peak Current | 200A(25℃, SOC50%, 1min) | |||
| Protection Level | IP54 | |||
| Firefighting Configuration | Pack level + Aerosol | |||
| Discharge Temp. | -20℃~55℃ | |||
| Charge Temp. | 0℃~55℃ | |||
| Storage Temp. | 0℃~35℃ | |||
| Operating Temp. | -20℃~55℃ | |||
| Cycle Life | ＞6000 Cycles (80% DOD @25℃ 0.5C) | |||
| Dimension(mm) | 1150*1100*2300(±10) | |||
| Weight(With Batteries Approx.) | 1580Kg | 1630Kg | 1680Kg | 1750Kg |
| Dimension(W*H*D mm) | 1737*72*2046 | 1737*72*2072 | ||
| Weight | 5.4±0.15kg | 5.45±0.164kg | ||
| Communication Protocol | CAN/RS485 ModBus/TCP/IP/RJ45 | |||
| Noise Level | ＜65dB | |||
| Functions | Pre-charge, Over-Less Voltage/Over-Less Temperature Protection, | |||
| Cells Balancing/SOC-SOH Calculation etc. | ||||
