ESS-GRID HV PACK
115V-800V High Voltage Lithium Battery All-in-on Energy Storage System
ESS-GRID HV PACK is an ALL-IN-ON energy storage system utilizing Lithium Iron Phosphate (LiFePO4) electrochemical technology designed for residential, small commercial, and industrial solar energy storage with simple racking connections and easy scalability. This high-voltage battery has excellent discharge performance and cycle life, providing reliable backup power and saving on power costs.
Main Features
Safe and Reliable
Less current with higher output power, high-quality power output, safe and reliable LiFePO4 anode material, and an IP20 protection level for reliable operation.
HV and High Efficiency Design
115V-800V high voltage design, high conversion efficiency for energy savings and environmental protection, minimal heat production and reduced energy loss, and support for high-voltage single-phase or three-phase inverters.
Modular and Stackable

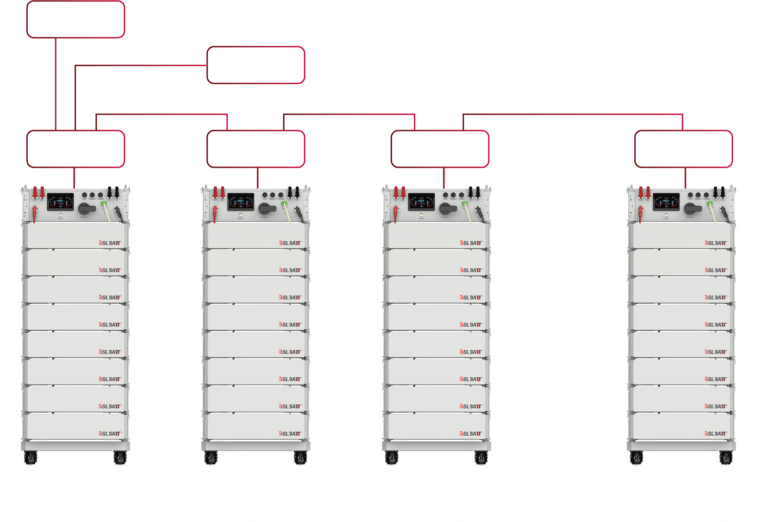

Series connection ensures high efficiency, with well-connected systems providing more power; parallel connection of up to 5 HV Battery Pack strings allows for a maximum of 466 kWh, offering simplicity and flexibility adaptable to various scenarios.
Multiple Port to Support Cloud-based System
Multiple ports support cloud-based systems, including RS485, CAN, and other communication interfaces; remote online upgrades and simple maintenance are supported, along with cloud system integration for precise monitoring of each electric core group and Bluetooth WiFi functionality.
Why choose lithium batteries from BSLBATT®️?
A+ Cell Composition
Cooperating with the world's top three LFP Cell manufacturers, the battery cell features ultra-safe, explosion-proof, no leakage, and ultra-long cycle life
Smart BMS
The smart BMS can monitor battery operating status in real time and integrates a variety of safety features, including overcharge and deep discharge protection, voltage and temperature observation, overcurrent protection, cell monitoring and balancing, and overheating protection.
APP & Cloud Platform
BSLBATT APP & Cloud Platform offer dynamic power flow and generation reports with real-time monitoring, comprehensive visualization, multi-terminal compatibility, remote OTA upgrades, integrated after-sales service, and robust backup functions with data encryption to reduce maintenance costs and enhance security.
Most professional pre-sale and after-sale service
BSLBATT technical team has more than ten years of experience in the lithium battery industry, providing you with the most professional pre-sales as well as after-sales service. In addition, BSLBATT has branches in the United States, the Netherlands, Japan, Mexico and other places, and strives to develop a comprehensive global layout.
| Model | HV PACK 5 | HV PACK 8 | HV PACK 10 | HV PACK 12 |
|---|---|---|---|---|
| Module Energy (kwh) | 7.776kWh | |||
| Module Nominal Voltage (V) | 57.6V | |||
| Module Capacity (Ah) | 135Ah | |||
| Controller Working Voltage | 80-800 VDC | |||
| Rated Voltage(V) | 288 | 460.8 | 576 | 691.2 |
| Battery Qty In Series (Optional) | 5(Min) | 8 | 10 | 12(Max) |
| System Configuration | 90S1P | 144S1P | 180S1P | 216S1P |
| Rate Power(kWh) | 38.88 | 62.21 | 77.76 | 93.31 |
| Maximum Charging Current(A) | 67.5 | |||
| Maximum Discharging Current(A) | 67.5 | |||
| Dimension(L*W*H)(MM) | 620*726*1110 | 620*726*1560 | 620*726*1860 | 620*726*2146 |
| Host Software Protocol | CAN BUS (Baud rate @250Kb/s) | |||
| Cycle Life(25°C) | 6000 cycles @90% DOD | |||
| Protection Level | IP20 | |||
| Storage Temperature | -10°C~40℃ | |||
| Warranty | 10 years | |||
| Battery Life | ≥15 years | |||
| Weight | 378Kg | 582Kg | 718Kg | 854Kg |
| Certification | UN38.3 / IEC62619 /IEC62040 | |||
